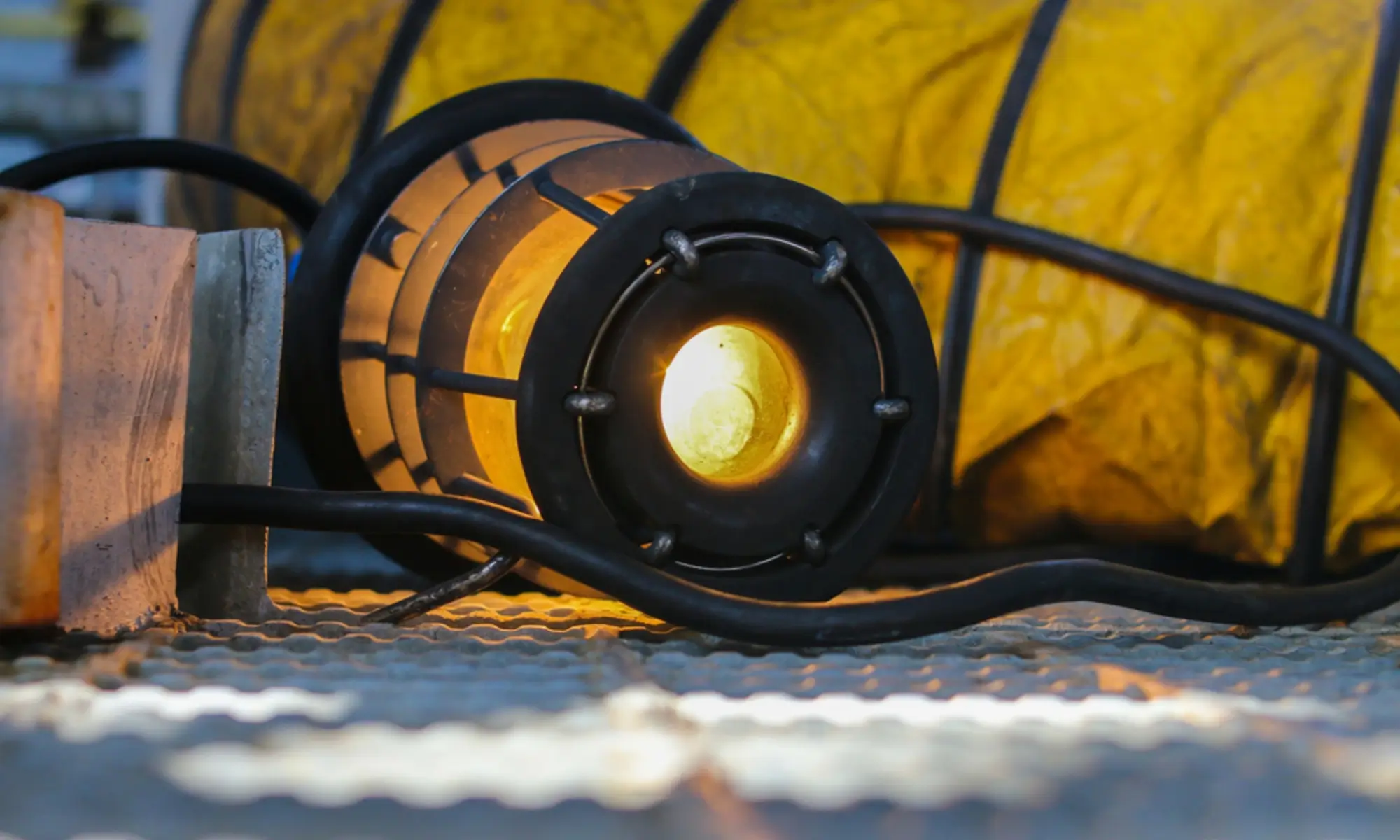

Confined spaces are integral to various industrial environments, including manufacturing plants, offshore platforms, and aviation maintenance facilities. However, these environments present unique challenges, particularly concerning lighting. Proper illumination is essential not only for operational efficiency but also for ensuring the safety of personnel.
This article explores the complexities of confined space lighting in hazardous areas, covering technical definitions, regulatory requirements, common challenges, and effective solutions.
Understanding Voltage Classifications
Low Voltage Defined
According to the international standard IEC60364-4, low voltage encompasses anything below 50VAC (or 120VDC). At this level, the risk of injury from electrical exposure is significantly reduced. It is essential to differentiate between “low voltage” and “extra-low voltage.” The IEC60364 standard uses “extra-low voltage” to address environments where “high voltage” (over 1000VAC) is present, such as electricity transmission, and “low voltage,” which typically covers mains voltages ranging from 110-240VAC.
In everyday language, “low voltage” usually refers to voltages of 50VAC and below. This distinction is crucial when discussing confined spaces, as the electrical properties of equipment directly impact safety.
The Risks in Confined Spaces
Entering a confined space inherently increases the risk associated with electrical currents. For instance, a torn cable carrying 110-240V (common mains supply) can lead to electrocution or even death. It is critical to understand that low voltage does not equate to explosion protection. Ex-certified equipment, necessary for hazardous areas, can operate at both high and low voltages. Thus, low voltage alone does not guarantee safety in explosion-prone environments.
Confined Spaces and Electrical Protection
Confined spaces such as small vessels, columns, tanks, and offshore platform separators require specialized low voltage equipment. These areas demand stringent electrical protection measures, especially where conductive materials or water are present. Conversely, habitat spaces like pressurized tents on rigs may not present the same electrocution risks but still require careful electrical management.
Practical Applications of Low Voltage
In practice, 24VAC is the most common requirement for low voltage (LV) equipment. For temporary lighting, 48VAC is often preferred due to its balance between safety and flexibility. Higher voltages like 48VAC allow for extended lighting setups with longer cable runs compared to 24VAC, enhancing operational flexibility without compromising safety.
However, some regions have stricter LV requirements. Countries like Belgium, Russia, and parts of the United States mandate lower voltages, such as 12VAC for portable lighting in confined spaces. For example, Belgium classifies confined spaces based on heat and moisture presence, requiring 24VAC in dry and cool environments and 12VAC in humid or hot conditions. Lower voltages, while safer, can reduce efficiency, limiting the length of luminaire chains and increasing the complexity of installations.
Case Study: Aviation Industry Lighting Solutions
The Challenge
David Lyon, Sales Manager at Wolf Safety Lamp, addressed a significant challenge faced by one of Europe’s largest passenger airlines. The airline required ATEX-certified lighting for the interior of jet airliners’ fuel tanks—a hazardous confined space with potential explosive atmospheres.
The existing practice involved using handheld torches, which were inadequate for illuminating the dark tanks and required operators to use both hands, slowing down maintenance operations and increasing turnaround time. The need was for a hands-free, high-quality lighting solution that met ATEX certification standards to ensure safety in potentially explosive environments.
The Solution
Wolf Safety Lamp provided a comprehensive lighting kit comprising:
- 3 Linkable LED Luminaires (LX-400 LinkEx™): These provided bright ambient lighting suspended at regular intervals along the fuel tank.
- 2 Handheld Inspection Leadlamps (SP-600 LinkEx™): These allowed maintenance personnel to perform close-up inspection tasks without occupying their hands.
The solution utilized 24VAC equipment, ensuring safety while offering flexibility in lighting arrangements. The implementation of these luminaires significantly improved visibility, reduced shadowing, and enabled hands-free operation, thereby decreasing aircraft turnaround times and enhancing safety.
Regulatory Considerations
COSHH and DSEAR Regulations
In the United Kingdom, the Control of Substances Hazardous to Health (COSHH) and the Dangerous Substances and Explosive Atmospheres Regulations (DSEAR) establish stringent requirements for managing hazardous substances and ensuring safe operations in explosive atmospheres. These regulations include specific provisions for lighting in confined spaces, mandating compliance to mitigate ignition risks.
DSEAR Lighting Classifications
Under DSEAR, confined spaces are classified into zones based on the risk level:
- Zone 0: Areas with a continuous presence of explosive atmospheres. Only intrinsically safe lighting fixtures are permitted.
- Zone 1: Areas where explosive atmospheres are likely to occur. Intrinsically safe or explosion-proof fixtures are required.
- Zone 2: Areas where explosive atmospheres are unlikely and, if they occur, are short-lived. Robust and resistant lighting fixtures are necessary.
Compliance with these classifications ensures that lighting installations do not become ignition sources, thereby safeguarding personnel and equipment.
Selection Criteria for Lighting Fixtures
When selecting lighting solutions for confined spaces in hazardous areas, several factors must be considered:
- Ingress Protection (IP) Rating: Ensures that fixtures can withstand dust, moisture, and other contaminants typical in confined spaces.
- Temperature Class: Determines the maximum surface temperature of lighting fixtures to prevent exceeding the auto-ignition temperature of nearby flammable substances.
- Certification: Fixtures should be certified by accredited bodies to confirm compliance with relevant safety standards and regulations.
Adhering to these criteria not only ensures regulatory compliance but also enhances overall safety and operational efficiency.
Best Practices and Maintenance
Comprehensive Equipment Selection and Placement
Proper equipment selection involves choosing the right voltage level and ensuring that all components, including transformers, are appropriately rated and positioned to prevent introducing high voltage into low voltage zones. For example, placing an Ex-certified transformer inside a confined space that requires low voltage lighting can negate safety benefits, as the transformer itself operates at higher voltages.
Regular Inspection and Maintenance
Regular inspection, maintenance, and testing of lighting installations are essential to identify and address potential safety concerns proactively. Lamps should be checked for damage before use and stored carefully to prevent degradation. Maintaining the integrity of lighting fixtures reduces the risk of them becoming ignition sources in hazardous environments.
Training and Preparedness
Training personnel in confined space operations and emergency response is crucial. Organizations like MRS Training & Rescue offer comprehensive programs that equip individuals with the necessary skills to operate safely in confined spaces, emphasizing the importance of proper lighting and hazard management.
Conclusion
Confined space lighting in hazardous areas is a complex but critical aspect of industrial safety. Understanding voltage classifications, adhering to regulatory standards, selecting appropriate lighting fixtures, and maintaining best practices are essential for mitigating risks associated with confined spaces. By implementing robust lighting solutions and ensuring continuous training and maintenance, organizations can enhance safety, improve operational efficiency, and comply with stringent regulatory requirements.
For those seeking to deepen their understanding and skills in confined space operations, specialized training programs are invaluable. Investing in the right lighting solutions and training not only safeguards personnel but also ensures smooth and efficient operations in some of the most challenging environments.
